Overview
In this section we will configure and manage the Exadata storage cells. In exadata the storage cells are separate servers with their own operation system, mini oracle database and of course a storage. The facilitate the smart scan capabilities of exadata, by being able to scan through an oracle block and provide ONLY the necessary rows to a server process. Since they provide only the rows, that information cannot “live” in the SGA, but only in the PGA.

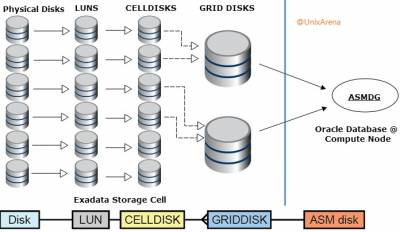

You can see basic architecture of the physical, LUN, celldisk and Grod Disks:
Configuration
Management
List Cell Processes
The storage cell server has couple processes:
- RS (Restart Server) - Used to start and shut down the Cell server (cellsrv) and Management Server (MS)
- MS (Management Server) - Provides exadata cell management and configuration. Cooperates with the cellcli interface. Also send alerts and gather statistics in addition to these collection by the cellsrv
- Cellsrv (Cell server) - Primary exadata component, provides most of the exadata storage services. Primary Cellsrv communicates with the oracle database in order to provide simple block requests or smart-scan capabilities. It also implements IO management (IORM) and collects numerous statistics.
RS Server
[celladmin@qr01celadm01 ~]$ ps -ef | grep cellrs root 1927 1 0 Nov29 ? 00:00:15 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/bin/cellrssrm -ms 1 -cellsrv 1 root 1934 1927 0 Nov29 ? 00:00:04 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/bin/cellrsbmt -rs_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellinit.ora -ms_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsms.state -cellsrv_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsos.state -debug 0 root 1935 1927 0 Nov29 ? 00:00:05 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/bin/cellrsmmt -rs_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellinit.ora -ms_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsms.state -cellsrv_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsos.state -debug 0 root 1936 1927 0 Nov29 ? 00:01:38 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/bin/cellrsomt -rs_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellinit.ora -ms_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsms.state -cellsrv_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsos.state -debug 0 root 1937 1934 0 Nov29 ? 00:00:00 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/bin/cellrsbkm -rs_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellinit.ora -ms_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsms.state -cellsrv_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsos.state -debug 0 root 1944 1937 0 Nov29 ? 00:00:04 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/bin/cellrssmt -rs_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellinit.ora -ms_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsms.state -cellsrv_conf /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/config/cellrsos.state -debug 0
MS Server
[celladmin@qr01celadm01 ~]$ ps -ef | grep msServer root 2003 1938 0 Nov29 ? 00:04:39 /usr/java/jdk1.7.0_72/bin/java -client -Xms256m -Xmx512m -XX:CompileThreshold=8000 -XX:PermSize=128m -XX:MaxPermSize=256m -Dweblogic.Name=msServer -Djava.security.policy=/opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/wls/wlserver_10.3/server/lib/weblogic.policy -XX:-UseLargePages -XX:ParallelGCThreads=8 -Dweblogic.ListenPort=8888 -Djava.security.egd=file:/dev/./urandom -Xverify:none -da -Dplatform.home=/opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/wls/wlserver_10.3 -Dwls.home=/opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/wls/wlserver_10.3/server -Dweblogic.home=/opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/wls/wlserver_10.3/server -Dweblogic.management.discover=true -Dwlw.iterativeDev= -Dwlw.testConsole= -Dwlw.logErrorsToConsole= -Dweblogic.ext.dirs=/opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/deploy/wls/patch_wls1036/profiles/default/sysext_manifest_classpath weblogic.Server 1000 7610 7441 0 03:21 pts/0 00:00:00 grep msServer [celladmin@qr01celadm01 ~]$
CellSRV
[celladmin@qr01celadm01 ~]$ ps -ef | grep "/cellsrv " root 1940 1936 22 Nov29 ? 05:34:49 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/cellsrv/bin/cellsrv 40 3000 9 5042 [celladmin@qr01celadm01 ~]$
it is important to note that both: MS and CellSRV are children of the RS server (they have RS as a parent).
Examine storage Cell
With the cellCli we can also list the storage cell Luns. P.S. Since I don't have money for real exadata there will be some discrepencies between my output and the real output which you will get in the real exadata: Each exadata consists of:
- 12 Hard disk based Luns
- 4 Flash based Luns
Let's firstly start with the examination of tha Hard disk based storage:
Hard Disk Based
To list the status of a storage cell server, we can use the following command:
[celladmin@qr01celadm01 ~]$ cellcli -e list cell qr01celadm01 online [celladmin@qr01celadm01 ~]$
We can obtain more detailed information using the cellCli interface:
[celladmin@qr01celadm01 ~]$ cellcli CellCLI: Release 12.1.2.1.0 - Production on Mon Nov 30 03:30:03 UTC 2020 Copyright (c) 2007, 2013, Oracle. All rights reserved. Cell Efficiency Ratio: 391 CellCLI> list cell detail name: qr01celadm01 cellVersion: OSS_12.1.2.1.0_LINUX.X64_141206.1 cpuCount: 2 diagHistoryDays: 7 fanCount: 0/0 fanStatus: normal flashCacheMode: WriteThrough id: ef92136a-837c-4e1d-88d2-e01f5ab89b7b interconnectCount: 0 interconnect1: ib0 interconnect2: ib1 iormBoost: 0.0 ipaddress1: 192.168.1.105/24 ipaddress2: 192.168.1.106/24 kernelVersion: 2.6.39-400.243.1.el6uek.x86_64 makeModel: Fake hardware memoryGB: 4 metricHistoryDays: 7 offloadGroupEvents: offloadEfficiency: 390.8 powerCount: 0/0 powerStatus: normal releaseVersion: 12.1.2.1.0 releaseTrackingBug: 17885582 status: online temperatureReading: 0.0 temperatureStatus: normal upTime: 1 days, 0:47 cellsrvStatus: running msStatus: running rsStatus: running CellCLI>
List Lun
CellCLI> list lun /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK00 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK00 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK01 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK01 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK02 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK02 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK03 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK03 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK04 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK04 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK05 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK05 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK06 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK06 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK07 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK07 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK08 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK08 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK10 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK10 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK11 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK11 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH00 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH00 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH01 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH01 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH02 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH02 normal /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH03 /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/FLASH03 normal
The result which you will get on the real exadata will be similary to:
CellCLI> list lun 0_0 0_0 normal 0_1 0_1 normal 0_2 0_2 normal 0_3 0_3 normal 0_4 0_4 normal 0_5 0_5 normal 0_6 0_6 normal 0_7 0_7 normal 0_8 0_8 normal 0_9 0_9 normal 0_10 0_10 normal 0_11 0_11 normal 1_1 1_1 normal 2_1 2_1 normal 4_1 4_1 normal 5_1 5_1 normal CellCLI>
The reason for that is the fact that on my virtualized env, the Cells are mapped to a virtualized disks and virtualized flash devices, where on real exadata, they will be mapped to PCI slot and device number.
We can list a specific LUN in more details, as follows:
List Lun
CellCLI> list lun where name like '.*DISK09' detail name: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 cellDisk: CD_09_qr01celadm01 deviceName: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 diskType: HardDisk id: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 isSystemLun: FALSE lunSize: 11 physicalDrives: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 raidLevel: "RAID 0" status: normal CellCLI>
List Physical Disk
CellCLI> list physicaldisk where luns like '.*DISK09' detail name: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 deviceName: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 diskType: HardDisk luns: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 physicalInsertTime: 2015-02-17T03:31:42+00:00 physicalSerial: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 physicalSize: 11 status: normal CellCLI>
List celldisk
--List all cell disks CellCLI> list celldisk where disktype=flashdisk FD_00_qr01celadm01 normal FD_01_qr01celadm01 normal FD_02_qr01celadm01 normal FD_03_qr01celadm01 normal --List Cell disk details CellCLI> list celldisk CD_09_qr01celadm01 detail name: CD_09_qr01celadm01 comment: creationTime: 2015-02-20T00:57:10+00:00 deviceName: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 devicePartition: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 diskType: HardDisk errorCount: 0 freeSpace: 0 id: f369c761-a9a1-4d1b-aaa0-51fc32edbc42 interleaving: none lun: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 physicalDisk: /opt/oracle/cell12.1.2.1.0_LINUX.X64_141206.1/disks/raw/DISK09 raidLevel: "RAID 0" size: 2G status: normal CellCLI>
List grid disk
CellCLI> list griddisk where celldisk=CD_09_qr01celadm01 detail name: DATA_QR01_CD_09_qr01celadm01 asmDiskGroupName: DATA_QR01 asmDiskName: DATA_QR01_CD_09_QR01CELADM01 asmFailGroupName: QR01CELADM01 availableTo: cachingPolicy: default cellDisk: CD_09_qr01celadm01 comment: creationTime: 2015-03-11T03:23:37+00:00 diskType: HardDisk errorCount: 0 id: 9a11b79a-1fa7-4527-85bf-28ad5cb98cac offset: 400M size: 720M status: active name: DBFS_DG_CD_09_qr01celadm01 asmDiskGroupName: DBFS_DG asmDiskName: DBFS_DG_CD_09_QR01CELADM01 asmFailGroupName: QR01CELADM01 availableTo: cachingPolicy: default cellDisk: CD_09_qr01celadm01 comment: creationTime: 2015-03-11T03:23:35+00:00 diskType: HardDisk errorCount: 0 id: e304a244-75de-4ea6-b92d-b480e2226615 offset: 48M size: 352M status: active name: RECO_QR01_CD_09_qr01celadm01 asmDiskGroupName: RECO_QR01 asmDiskName: RECO_QR01_CD_09_QR01CELADM01 asmFailGroupName: QR01CELADM01 availableTo: cachingPolicy: default cellDisk: CD_09_qr01celadm01 comment: creationTime: 2015-03-11T03:23:40+00:00 diskType: HardDisk errorCount: 0 id: 9923a077-dc5e-4f53-adc5-4cc3eaaa9916 offset: 1.09375G size: 928M status: active CellCLI>
Flash Based
The flash based modules, can be examined as the hard disk based ones:
List the cell disks
--Basic CellCLI> list celldisk where disktype=flashdisk FD_00_qr01celadm01 normal FD_01_qr01celadm01 normal FD_02_qr01celadm01 normal FD_03_qr01celadm01 normal --Detail CellCLI> list flashcache detail name: qr01celadm01_FLASHCACHE cellDisk: FD_02_qr01celadm01,FD_03_qr01celadm01,FD_01_qr01celadm01,FD_00_qr01celadm01 creationTime: 2020-11-29T02:43:46+00:00 degradedCelldisks: effectiveCacheSize: 1.0625G id: 7fcc1eac-2214-40a1-9f27-eb988ec75340 size: 1.0625G status: normal CellCLI>
Apart from the flashdisk, the exadata has also flashlog, to improve the redo log latency.
Flash log
--Detail CellCLI> list flashlog detail name: qr01celadm01_FLASHLOG cellDisk: FD_01_qr01celadm01,FD_03_qr01celadm01,FD_00_qr01celadm01,FD_02_qr01celadm01 creationTime: 2020-11-29T02:43:44+00:00 degradedCelldisks: effectiveSize: 256M efficiency: 100.0 id: 1bb5db75-8136-4952-9d20-bec44a303a17 size: 256M status: normal CellCLI> --Content CellCLI> list flashcachecontent detail ... cachedKeepSize: 0 cachedSize: 262144 cachedWriteSize: 0 columnarCacheSize: 0 columnarKeepSize: 0 dbID: 2080757153 dbUniqueName: DBM hitCount: 11345 missCount: 9 objectNumber: 4294967294 tableSpaceNumber: 0
Stop / Start Cell Services
We can Restart all cell services using the cellCli interface as follows:
[root@qr01celadm01 ~]# cellcli CellCLI: Release 12.1.2.1.0 - Production on Mon Nov 30 03:36:16 UTC 2020 Copyright (c) 2007, 2013, Oracle. All rights reserved. Cell Efficiency Ratio: 392 CellCLI> alter cell restart services all Stopping the RS, CELLSRV, and MS services... The SHUTDOWN of services was successful. Starting the RS, CELLSRV, and MS services... Getting the state of RS services... running Starting CELLSRV services... The STARTUP of CELLSRV services was successful. Starting MS services... The STARTUP of MS services was successful. CellCLI>
This action, will NOT cause downtime.
