Oracle Golden gate for Big data is a separate software than the standard Oracle Golden Gate, so you need to download it from the edelivery or the oracle site.

[oracle@edvmr1p0 ~]$ mkdir /u01/app/oggtrg
[oracle@edvmr1p0 ~]$ cd /u01/app/oggtrg
[oracle@edvmr1p0 oggtrg]$ pwd
/u01/app/oggtrg
[oracle@edvmr1p0 oggtrg]$ unzip /stage/V839824-01.zip              <- Unzip the binaries
Archive:  /stage/V839824-01.zip
  inflating: ggs_Adapters_Linux_x64.tar
  inflating: OGG_BigData_12.3.0.1.0_Release_Notes.pdf
  inflating: OGG_BigData_12.3.0.1_README.txt

[oracle@edvmr1p0 oggtrg]$ tar xvf ggs_Adapters_Linux_x64.tar       <- Unzip the handlers
AdapterExamples/
.....................................

The source is standard Oracle Golen Gate 12c and it just extract from a schema: oggsrc and send data to the replicat in a normal / standard way:

GGSCI (edvmr1p0) 10> info all

Program     Status      Group       Lag at Chkpt  Time Since Chkpt

MANAGER     RUNNING
EXTRACT     RUNNING     DPUMP       00:00:00      00:00:06
EXTRACT     RUNNING     PRIEX       00:00:10      00:00:06


GGSCI (edvmr1p0) 11> view param mgr

PORT 7809
DynamicPortList 20000-20099
ACCESSRULE, PROG SERVER, ALLOW
PurgeOldExtracts ./dirdat/*, UseCheckPoints, MinKeepHours 2
Autostart Extract *
AUTORESTART Extract *, WaitMinutes 1, Retries 3



GGSCI (edvmr1p0) 12> view param DPUMP

Extract dpump
SETENV (ORACLE_SID='orcl')
SETENV (ORACLE_HOME='/u01/app/oracle/product/12.1.0.2/db_1')
UserIdAlias oggadmin
rmthost localhost, mgrport 7909
rmttrail ./dirdat/dp
Table oggsrc.*;


GGSCI (edvmr1p0) 13> view param PRIEX

Extract priex
SETENV (ORACLE_SID='orcl')
SETENV (ORACLE_HOME='/u01/app/oracle/product/12.1.0.2/db_1')
UserIdAlias oggadmin
TranlogOptions IntegratedParams (max_sga_size 256)
Exttrail ./dirdat/in
LOGALLSUPCOLS
UPDATERECORDFORMAT COMPACT
GETUPDATEBEFORES
Table oggsrc.*;

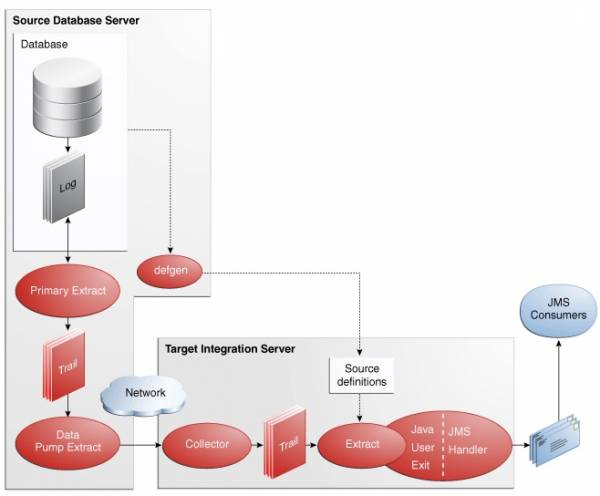

The destination will accept the data from the source (standard Oracle Golden Gate) and send it to ActiveMQ via Java Handler

[oracle@edvmr1p0 oggtrg]$ ggsci

Oracle GoldenGate Command Interpreter
Version 12.2.0.1.160823 OGGCORE_OGGADP.12.2.0.1.0_PLATFORMS_161019.1437
Linux, x64, 64bit (optimized), Generic on Oct 19 2016 16:01:40
Operating system character set identified as UTF-8.

Copyright (C) 1995, 2016, Oracle and/or its affiliates. All rights reserved.



GGSCI (edvmr1p0) 1> create subdirs

Creating subdirectories under current directory /u01/app/oggtrg

Parameter files                /u01/app/oggtrg/dirprm: created
Report files                   /u01/app/oggtrg/dirrpt: created
Checkpoint files               /u01/app/oggtrg/dirchk: created
Process status files           /u01/app/oggtrg/dirpcs: created
SQL script files               /u01/app/oggtrg/dirsql: created
Database definitions files     /u01/app/oggtrg/dirdef: created
Extract data files             /u01/app/oggtrg/dirdat: created
Temporary files                /u01/app/oggtrg/dirtmp: created
Credential store files         /u01/app/oggtrg/dircrd: created
Masterkey wallet files         /u01/app/oggtrg/dirwlt: created
Dump files                     /u01/app/oggtrg/dirdmp: created


GGSCI (edvmr1p0) 2> edit param mgr



GGSCI (edvmr1p0) 3> start mgr
Manager started.


GGSCI (edvmr1p0) 4> info all

Program     Status      Group       Lag at Chkpt  Time Since Chkpt

MANAGER     RUNNING


GGSCI (edvmr1p0) 5> view param mgr

Port 7909
DynamicPortList 20100-20199
PurgeOldExtracts ./dirdat/pe*, UseCheckPoints, MinKeepHours 2
Autostart Replicat R*
AUTORESTART Replicat *, WaitMinutes 1, Retries 3

GGSCI (edvmr1p0) 3> edit param jmsrep

REPLICAT JMSREP
getEnv (JAVA_HOME)
getEnv (LD_LIBRARY_PATH)
getEnv (PATH)
TARGETDB LIBFILE libggjava.so SET property=dirprm/jmsrep.properties
MAP oggsrc.*, TARGET oggsrc.*;


GGSCI (edvmr1p0) 4> add replicat jmsrep, exttrail ./dirdat/dp
REPLICAT added.

Create the Java Adapter Properties file: jmsrep.properties

vi /u01/app/oggtrg/dirprm/jmsrep.properties

##
gg.handlerlist=jms
## JNDI settings
java.naming.provider.url=tcp://localhost:61616
java.naming.factory.initial=org.apache.activemq.jndi.ActiveMQInitialContextFactory
##
gg.handler.jms.type=jms
gg.handler.jms.destinationType=queue
gg.handler.jms.destination=dynamicQueues/ggdemo.queueA
gg.handler.jms.connectionFactory=ConnectionFactory
gg.handler.jms.mode=op
gg.handler.jms.format=xml2
gg.log.level=debug
gg.log=log4j
goldengate.userexit.timestamp=utc
goldengate.userexit.nochkpt=true
jvm.bootoptions=-Djava.class.path=.:ggjava/ggjava.jar:dirprm:/opt/activemq/activemq-all-5.14.3.jar:/opt/activemq/lib/optional/log4j-1.2.17.jar:/opt/activemq/lib/optional/slf4j-log4j12-1.7.13.jar -Dlog4j.configuration=log4j.properties -Xmx512m -Xmx64m
:wq
